DR770X-2CH LTE (NA)
Original price was: USD382.99.USD344.69Current price is: USD344.69.
- BlackVue DR770X-2CH LTE (NORTH AMERICA VERSION)
- 4G LTE band support: B2, B4, B12
- Carrier support: US: AT&T, T-Mobile; Canada: Rogers, Telus
- SIM card NOT included.
2 years (Dash Cam)
Best low-light clarity
Powered by the Best Dash Cam Sensor
Fine-tuned by BLACKVUE
Front / Rear
Seamless
Pairing
Native Parking Mode
DR770X-2CH LTE Series
North America
DR770X-2CH LTE (NA)Global*
DR770X-2CH LTE (GL)
Taxi

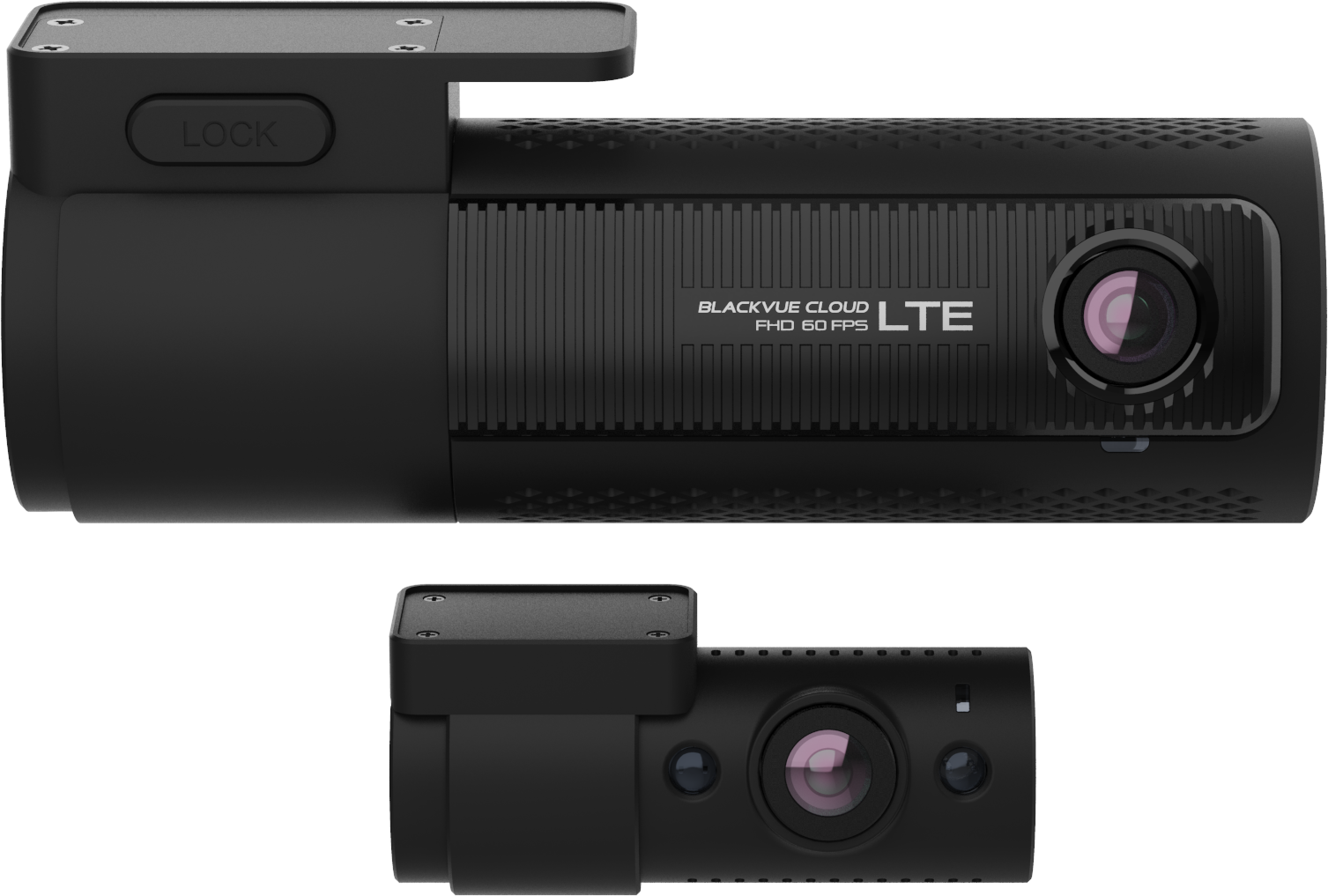

DR770X-2CH IR LTE

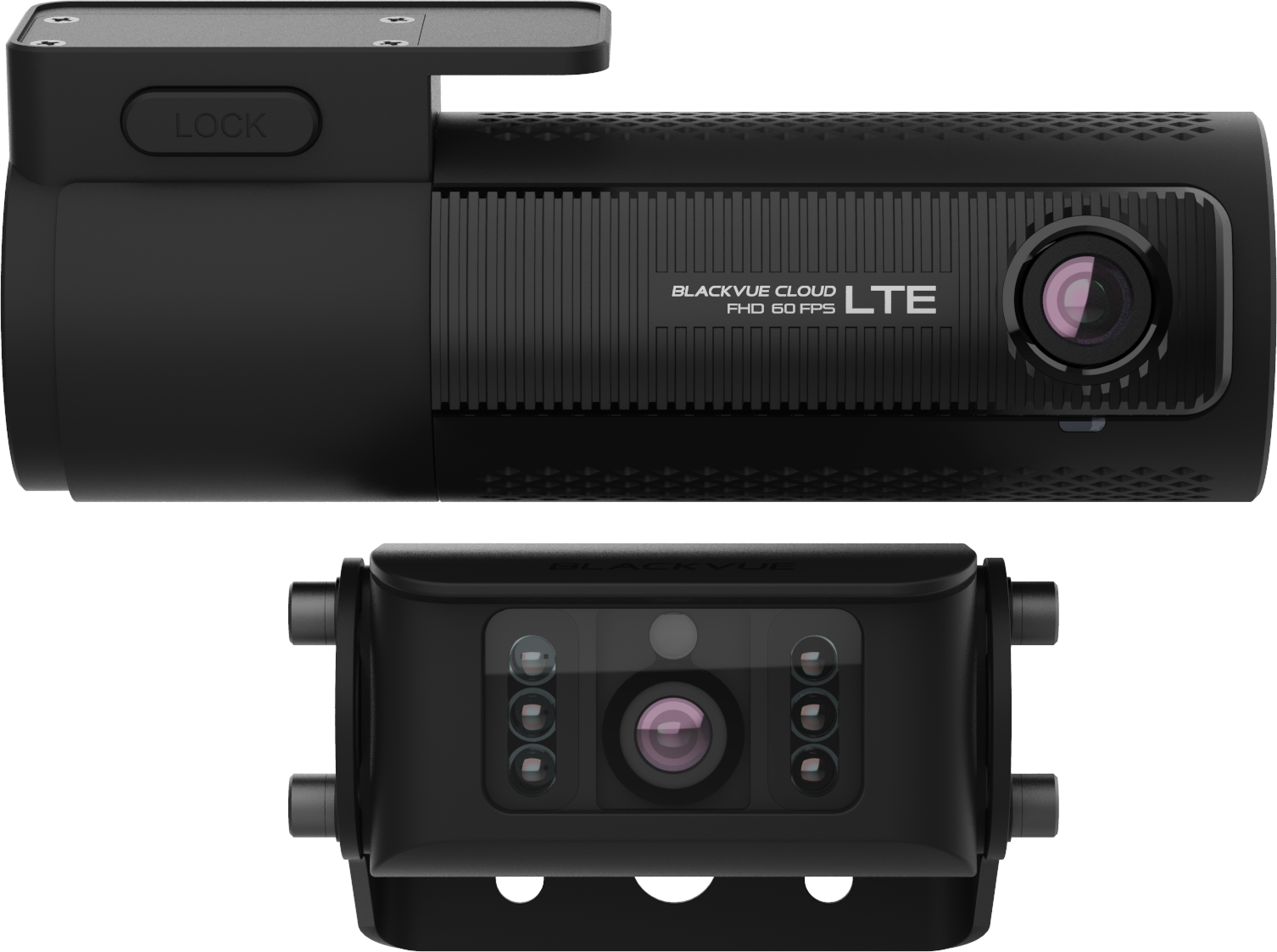

Truck
DR770X-2CH TRUCK LTEPackage Info
Weight
0.975kg (2.15lbs)
Dimensions
123(L) x 197(W) x 103(H) mm
4.8(L) x 7.8(W) x 4.1(H) inch
MEMORY CAPACITY
64GB, 128GB, 256GB, 512GB
What’s Included

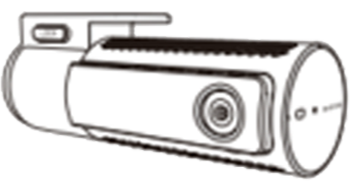

Front Camera
Rear Camera

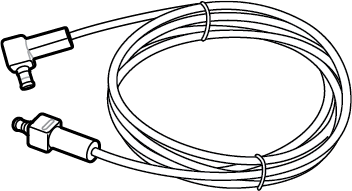

Rear Camera Connection Cable

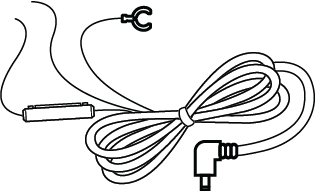

Hardwiring Power Cable
Cigarette Lighter Power Cable
Double-sided Tape
for the Mounting Brackets
SIM Eject Tool
MicroSD Card
MicroSD Card Reader
Pry Tool
Quick Start Guide

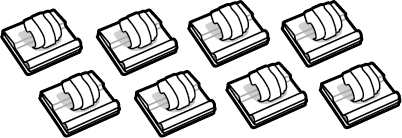

Cable Clips (8EA)
Technical Specs
| Specifications | |
|---|---|
| Model Name | DR770X-2CH LTE (NA) |
| Channel |
2CH |
| Highlights |
Built-in 4G LTE, Sony STARVIS image sensors |
| Product Dimensions |
Front: Black / Width 137.6 mm x Height 43 mm / 155 g
|
| Rear Camera Connection |
Coaxial cable |
| Memory Support |
microSD card up to 512GB |
| Recording Modes |
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). |
| Parking Mode |
YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications |
YES |
| Imaging Sensor |
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle |
Front: Diagonal 139°, Horizontal 116°, Vertical 61° |
| Resolution Frame Rate |
Front: Full HD (1920×1080) @ 60 fps |
| Video Codec |
H.264 (AVC) |
| Image Quality and Bitrate Front/Rear |
Highest (Extreme): 25+10 Mbps |
| Format Free |
YES (Adaptive) |
| Event File Overwrite Protection |
YES (up to 50) |
| SD Card Failure Alert |
YES |
| Scheduled Reboot |
YES |
| Video File Extension |
MP4 |
| Wi-Fi |
Built-in (802.11n (2.4~2.4835 GHz)) |
| Cloud Compatible |
YES |
| Specifications | |
|---|---|
| GPS | Built-in (Dual Band: GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED |

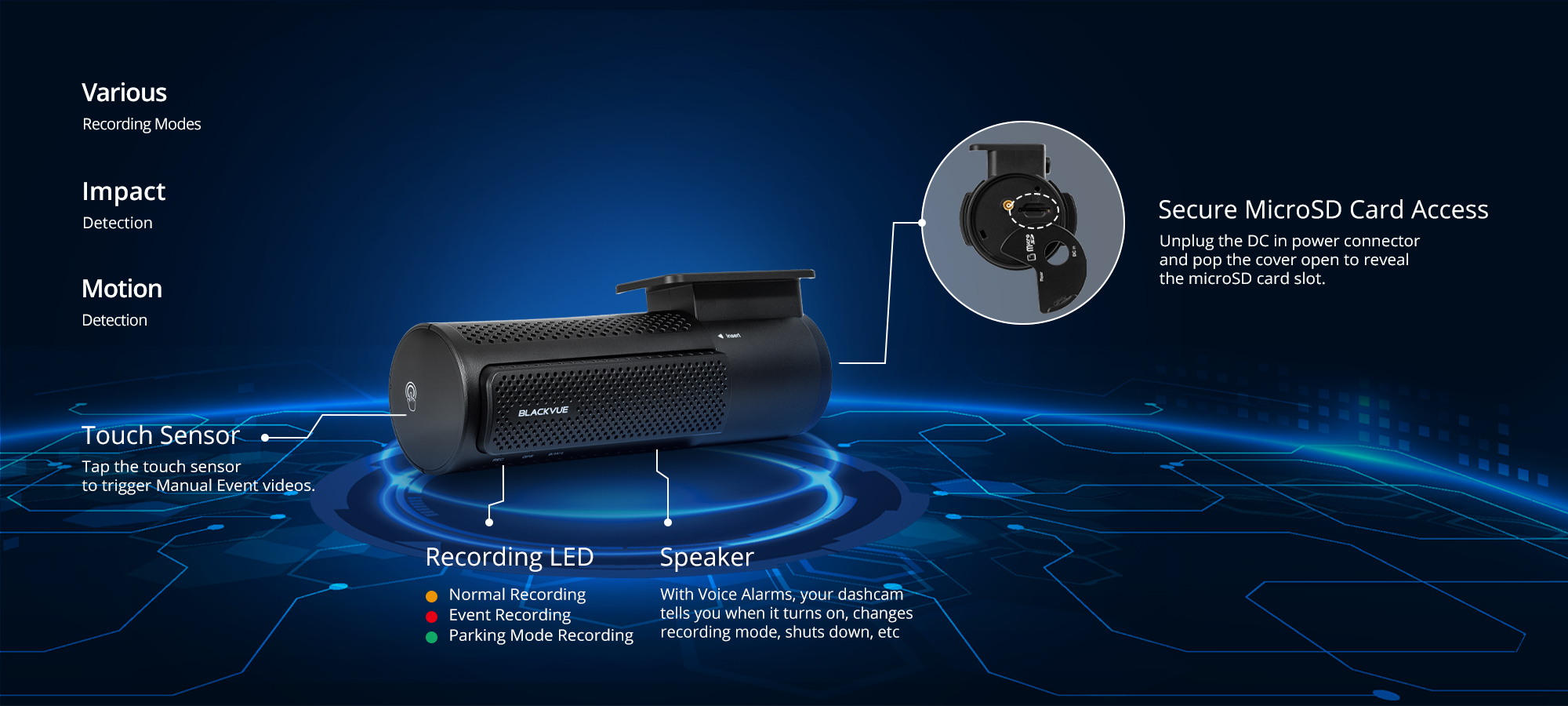

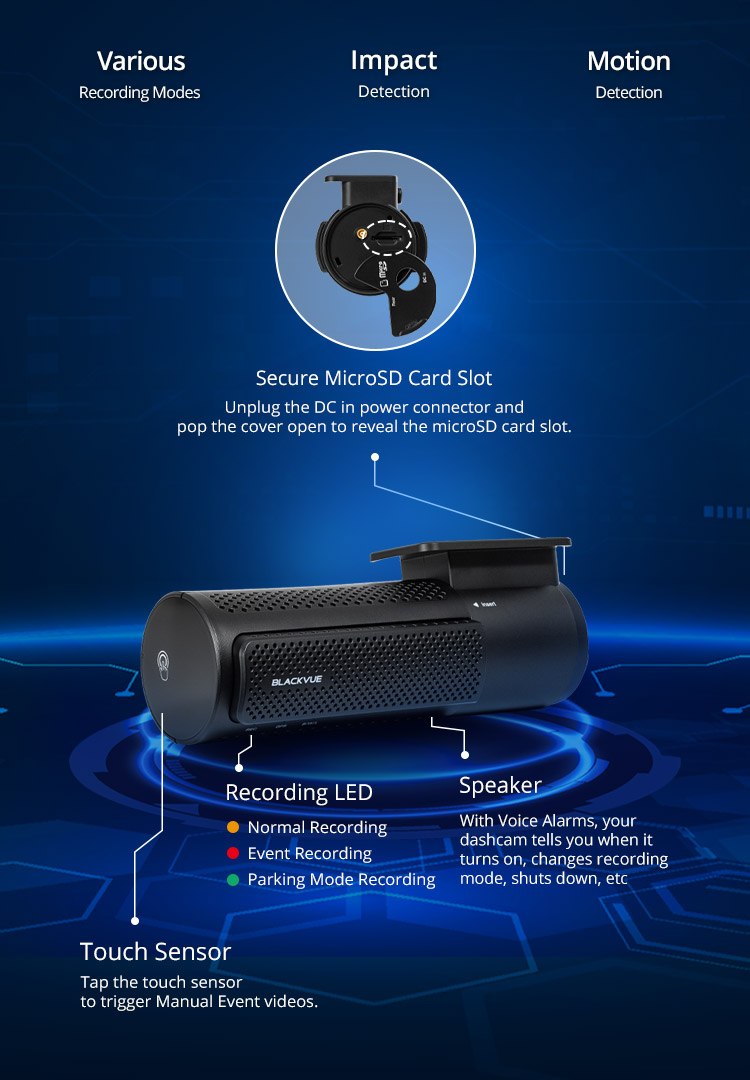

| Button | Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. |
| Operation Temperature | -20 °C − 70 °C (-4 °F − 158 °F) |
| Storage Temperature | -20 °C − 70 °C (-4 °F − 158 °F) |
| High Temp Cut Off | Approx. 80 °C (176 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (3 pole DC Plug (Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode (GPS On/Cloud On) : Avg. 470mA/12V Normal Mode (GPS On/Cloud Off) : Avg. 410mA/12V Parking Mode (GPS Off/Cloud On) : Avg. 370mA/12V Parking Mode (GPS Off/Cloud Off) : Avg. 310mA/12V * Actual power consumption may vary depending on use conditions and environment. * Model DR770X-2CH LTE should be used only in circuits that satisfy Limited Power Source. (Maximum power consumption is to be less than 100 VA or 8 A). |
| Certifications | Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE, KC Rear: FCC, ISED, CE, UCKA, RCM, RoHS, WEEE, KC |
| Software | BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| Application | BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher |
| Others | Built-in 4G LTE module compatible with Nano-SIM. Frequency Bands: B2, B4, B12 |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | Built-in (SIM card not included) |
Recording Time
| Model | Memory Capacity | Image Quality | Resolution |
|---|---|---|---|
| DR770X-2CH LTE / DR750X-2CH LTE Plus/ DR750-2CH LTE |
Full HD @60fps + Full HD @30fps | ||
| 16GB | Extreme | 55 MIN | |
| Highest | 1 HR 25 MIN | ||
| High | 1 HR 50 MIN | ||
| Normal | 2 HR 20 MIN | ||
| 32GB | Extreme | 1 HR 50 MIN | |
| Highest | 2 HR 50 MIN | ||
| High | 3 HR 40 MIN | ||
| Normal | 4 HR 40 MIN | ||
| 64GB | Extreme | 3 HR 40 MIN | |
| Highest | 5 HR 40 MIN | ||
| High | 7 HR 20 MIN | ||
| Normal | 9 HR 20 MIN | ||
| 128GB | Extreme | 7 HR 20 MIN | |
| Highest | 11 HR 20 MIN | ||
| High | 15 HR 40 MIN | ||
| Normal | 18 HR 40 MIN | ||
| 256GB | Extreme | 14 HR 40 MIN | |
| Highest | 22 HR 40 MIN | ||
| High | 31 HR 20 MIN | ||
| Normal | 37 HR 20 MIN | ||
| Bitrate (Mbps) Front + Rear | Extreme | 25 + 10 | |
| Highest | 12 + 10 | ||
| High | 10 + 8 | ||
| Normal | 8 + 6 |
