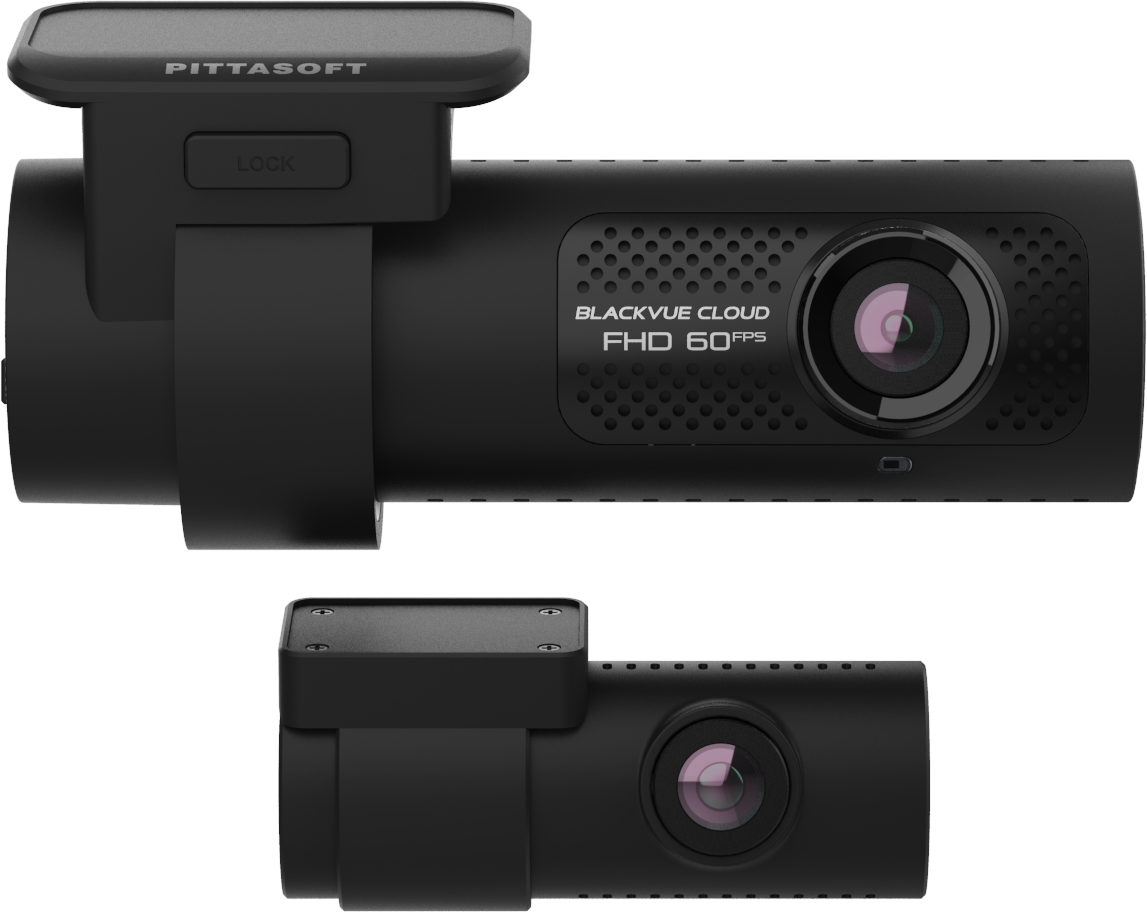

DR770X-2CH II

DR770X-2CH II

USD313.19 – USD502.19

- BlackVue DR770X-2CH II features Full HD front and rear protection for your vehicle, powered by Sony STARVIS™ image sensors for best image quality under any light.
- Also included are GPS logger, built-in Wi-Fi, Cloud connectivity, impact and motion detection.

SKU: KRHQD-772X2- Categories Cloud Dashcam, Dashcams, DR770X, NEW ARRIVAL Tags: 2 Cameras (2CH), 60FPS, Built-in GPS, Cloud dashcam, Full HD, Full HD Front Cam, Sony STARVIS Image Sensor, Standard Rear Cam, Wi-Fi

Warranty

2 years (Dash Cam)

Memory Capacity

Clear

Parking Mode Add-on

*Fuse Taps Type

KRHQA-FTA-3A

LTE Connectivity Module

Tamper-Proof Case
*Memory Capacity

Reset options

Quantity

Full HD Cloud Dashcams

Front / Rear

via Wi-Fi/
USB module

Seamless
Pairing

Native Parking Mode

Let your BLACKVUE watch over your vehicle 24/7

DR770X Series

Package Info

Weight

0.9kg (1.98lbs)

Dimensions

123(L) x 197(W) x 103(H)mm
4.8(L) x 7.8(W) x 4.1(H) inch

MEMORY CAPACITY

64GB, 128GB, 256GB, 512GB, 1TB

What’s Included

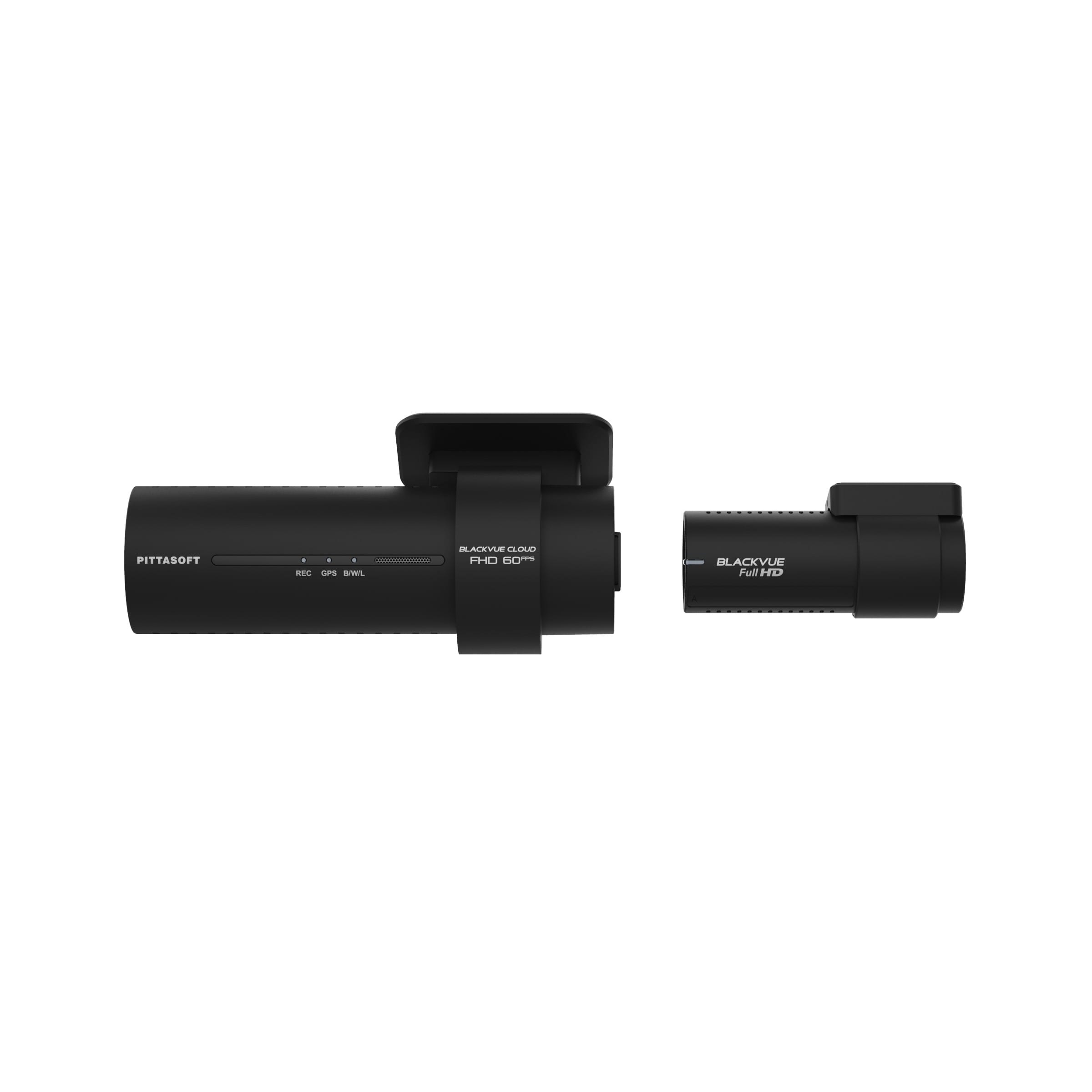

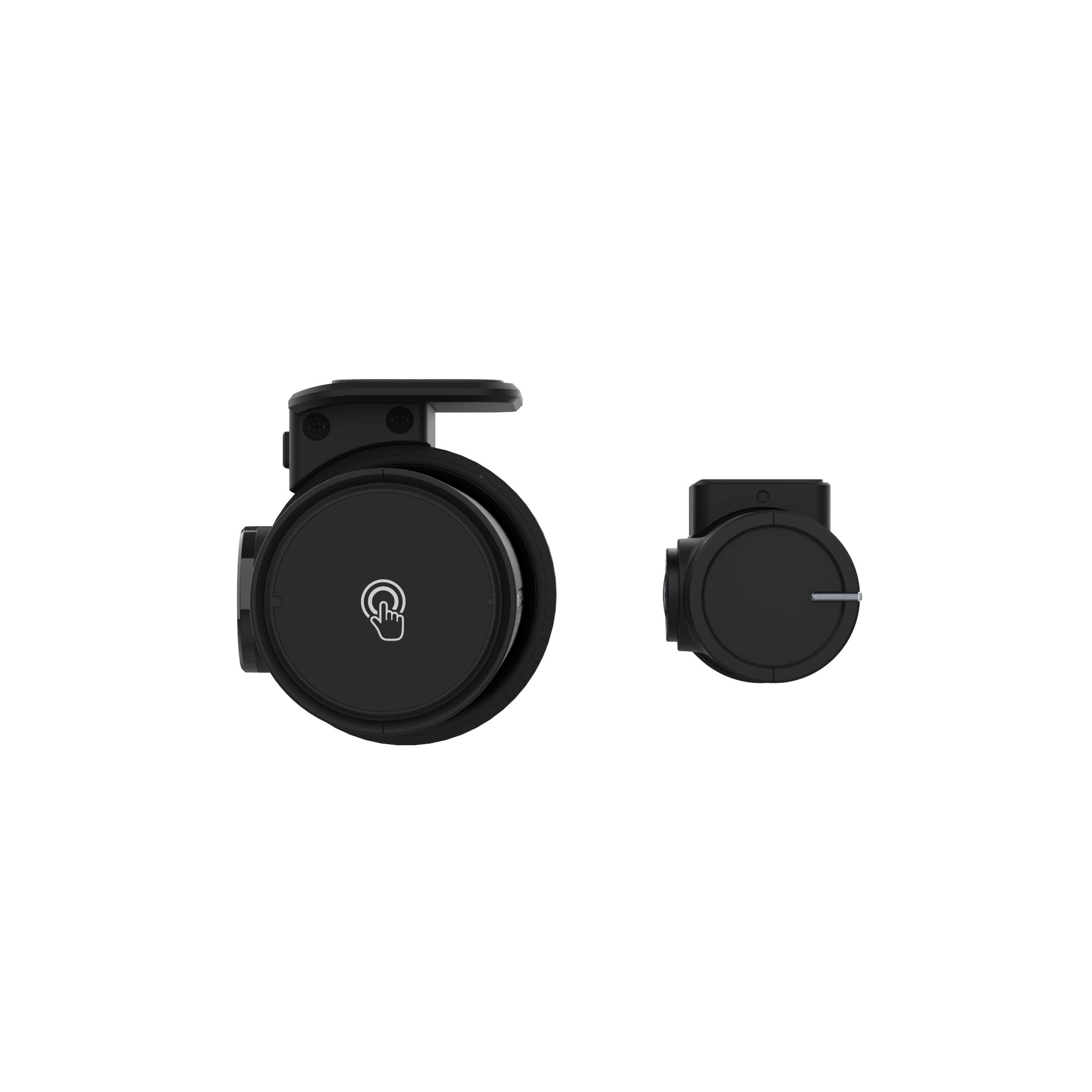

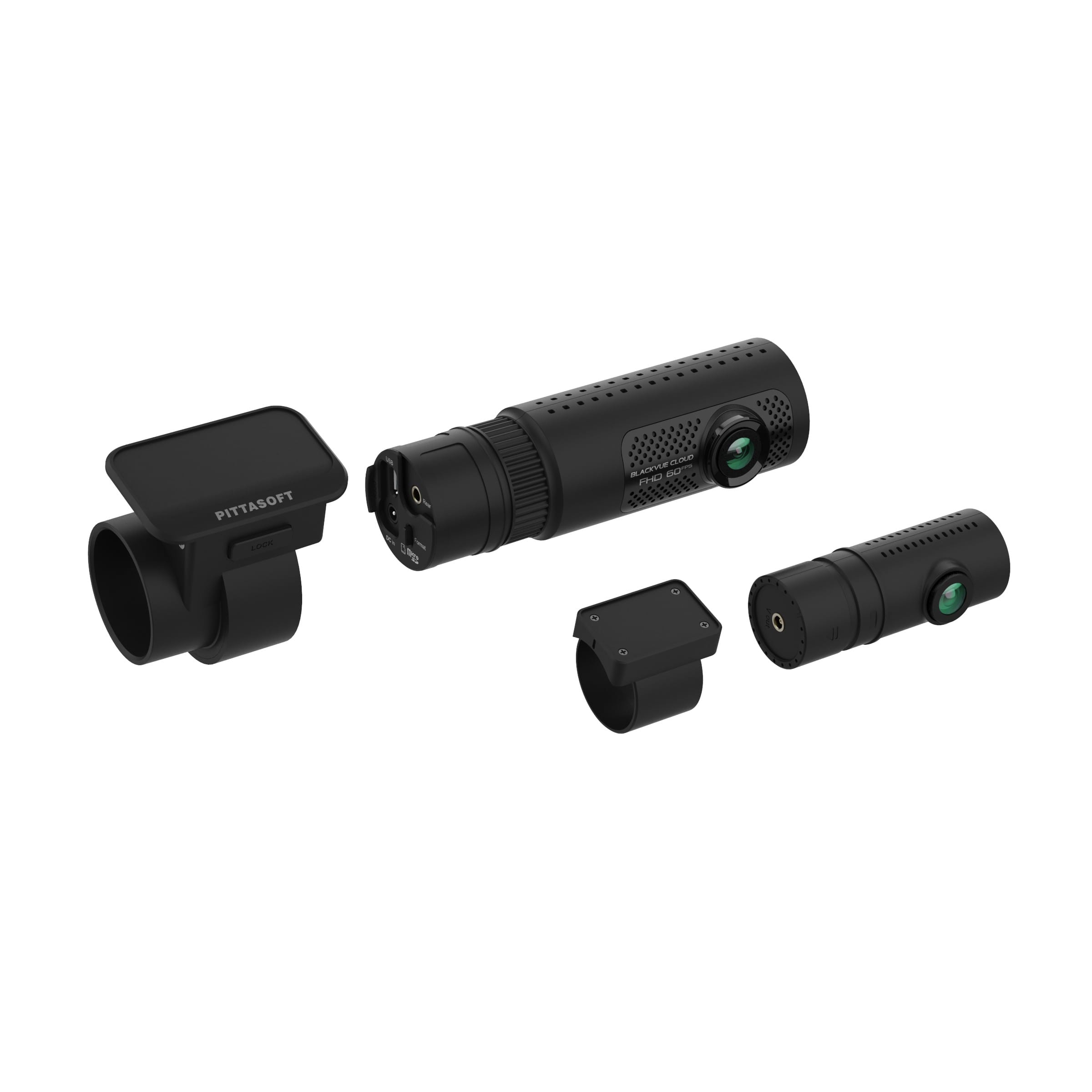

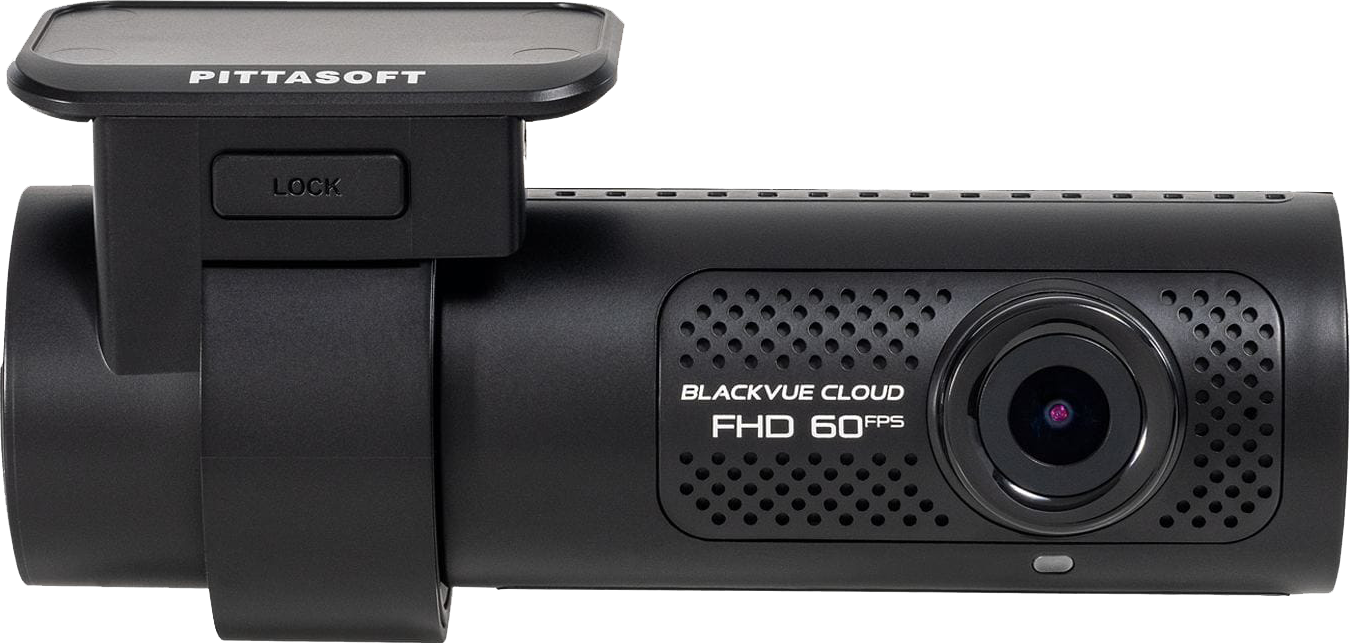

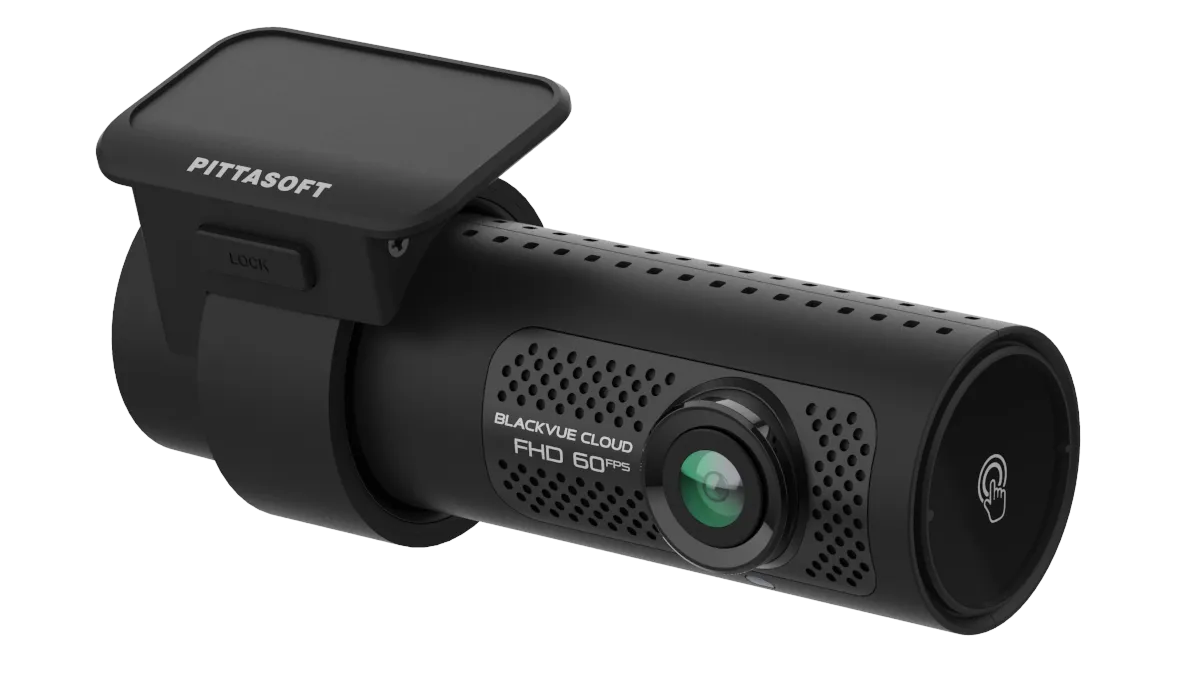

Front Camera

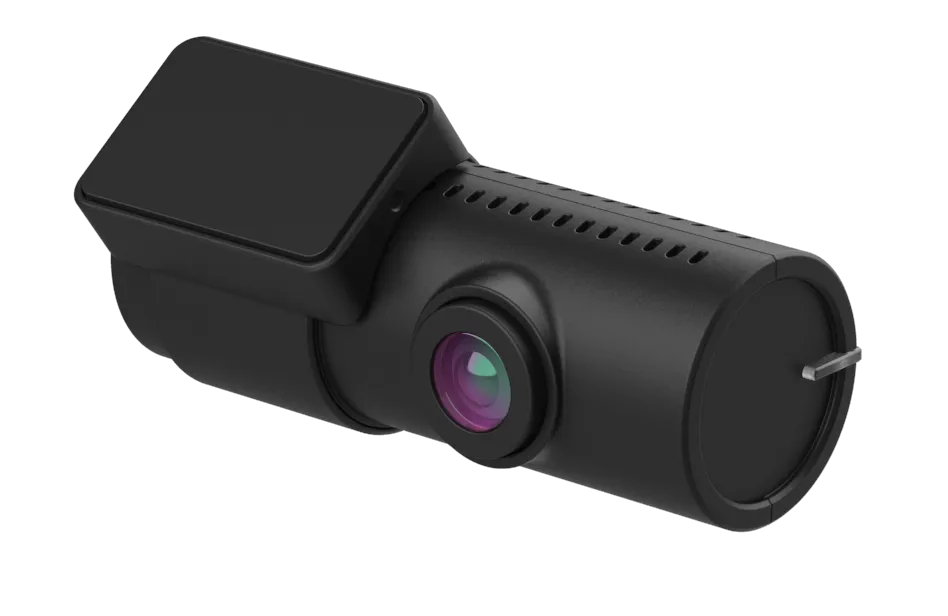

Rear Camera

Hardwiring Power Cable

USB-C Power Cable

USB-C 12V Adapter

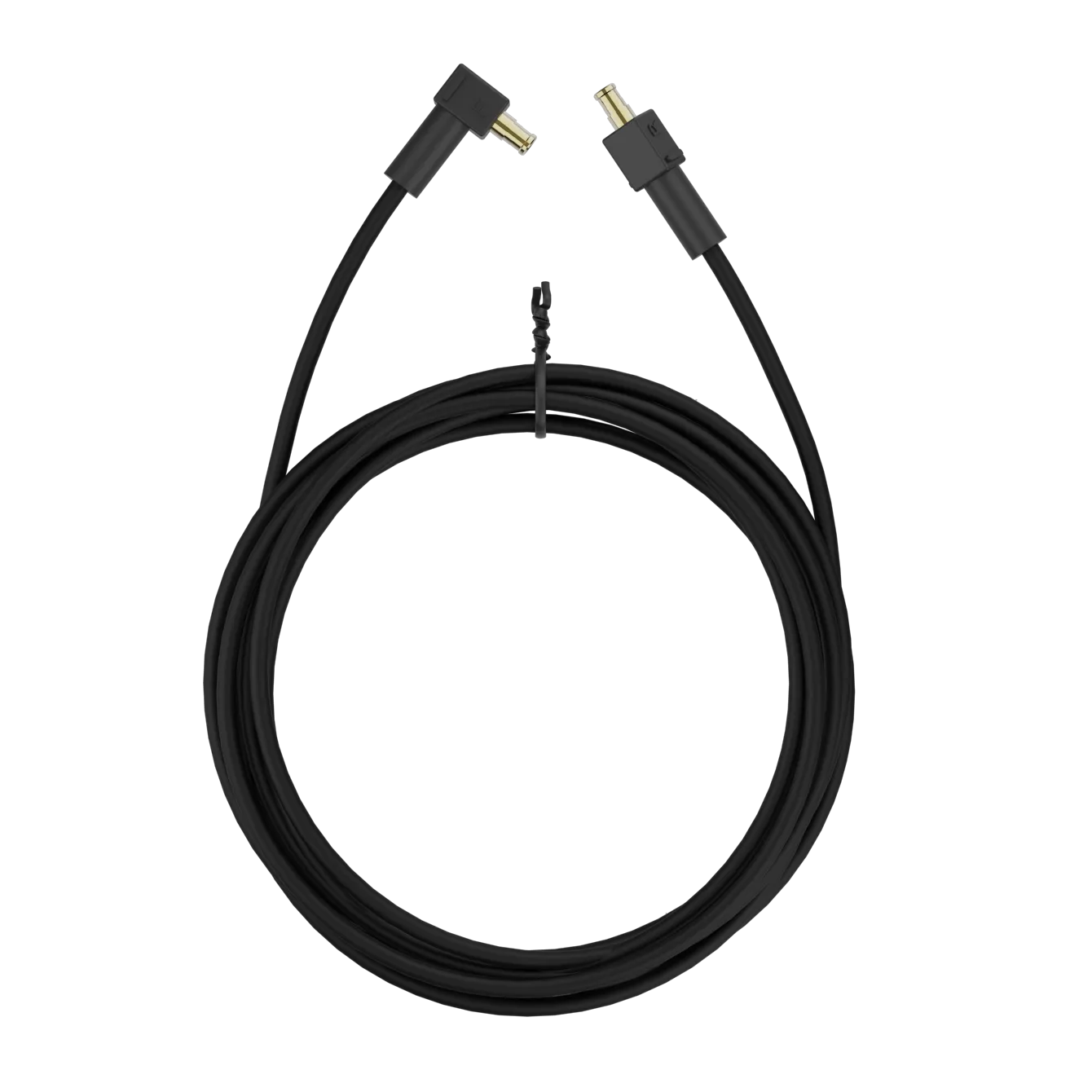

Rear camera connection cable

MicroSD Card

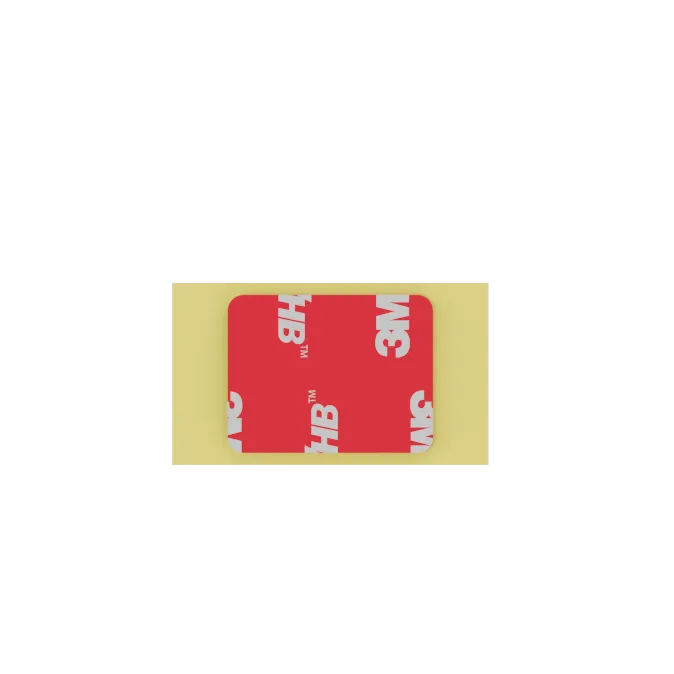

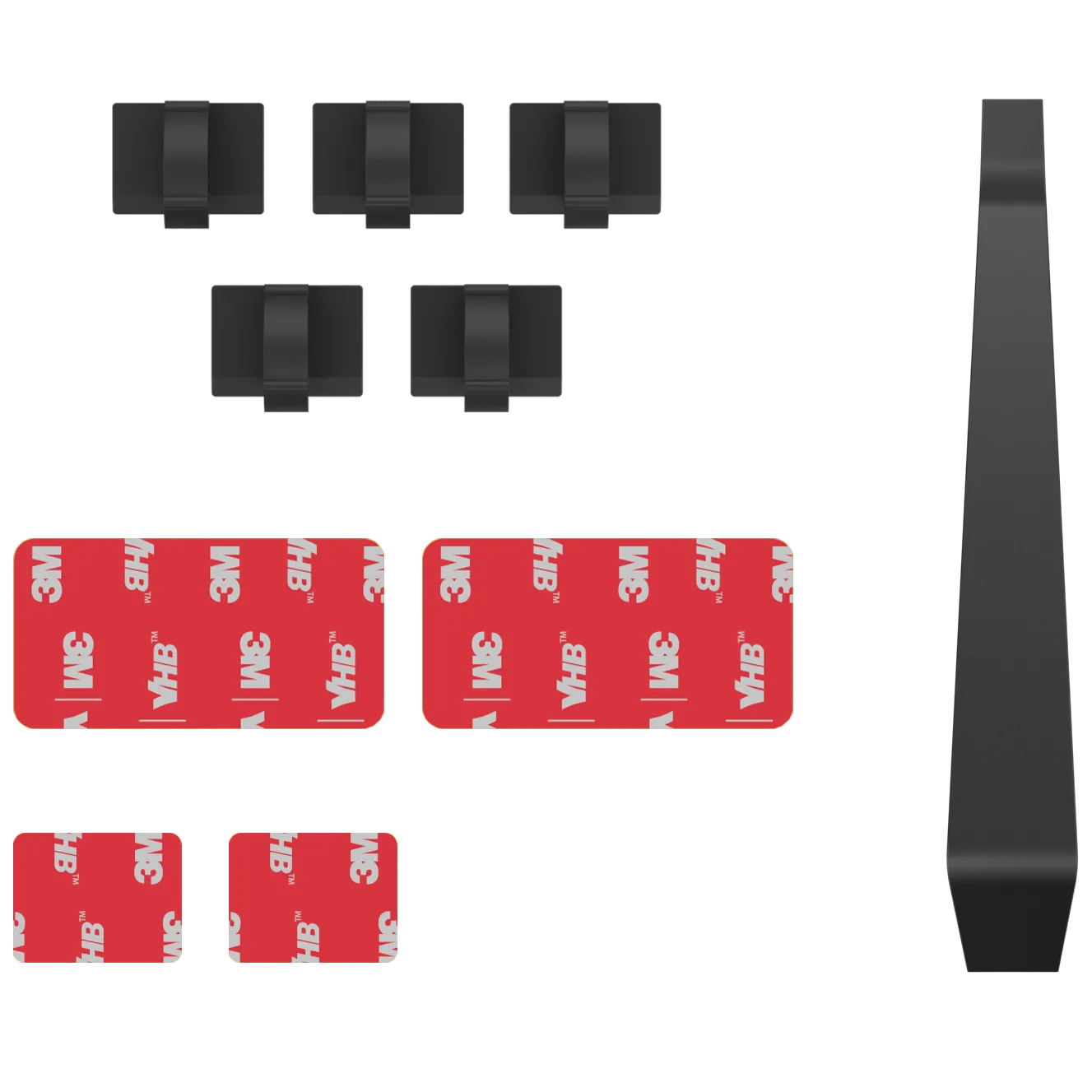

Double-sided tape for
the mounting brackets

Pry tool / Trim Remover

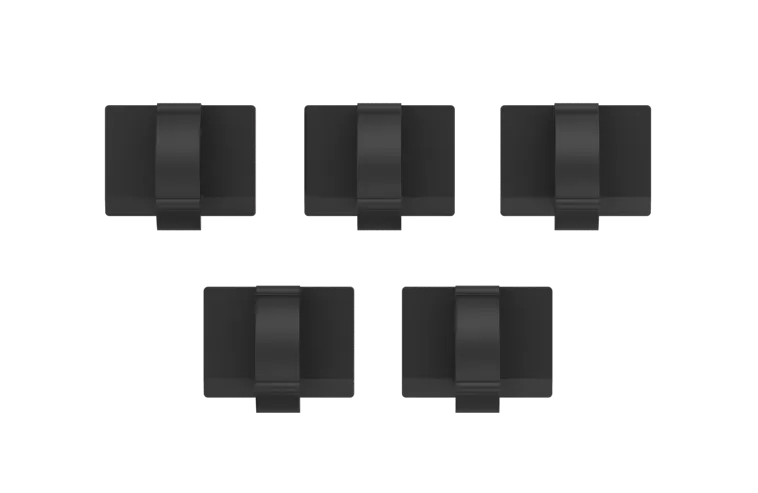

Cable clips (5 EA)

Alcohol Pad

Technical Specs

Specifications
Model Name	DR770X-2CH II
Channel	2CH
Highlights	Full HD (Front + Rear), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module
Product Dimensions	Front: Black / Width 118.5 mm x Height 36 mm / 95 g Rear: Black / Width 67.4 mm x Height 25 mm / 25 g

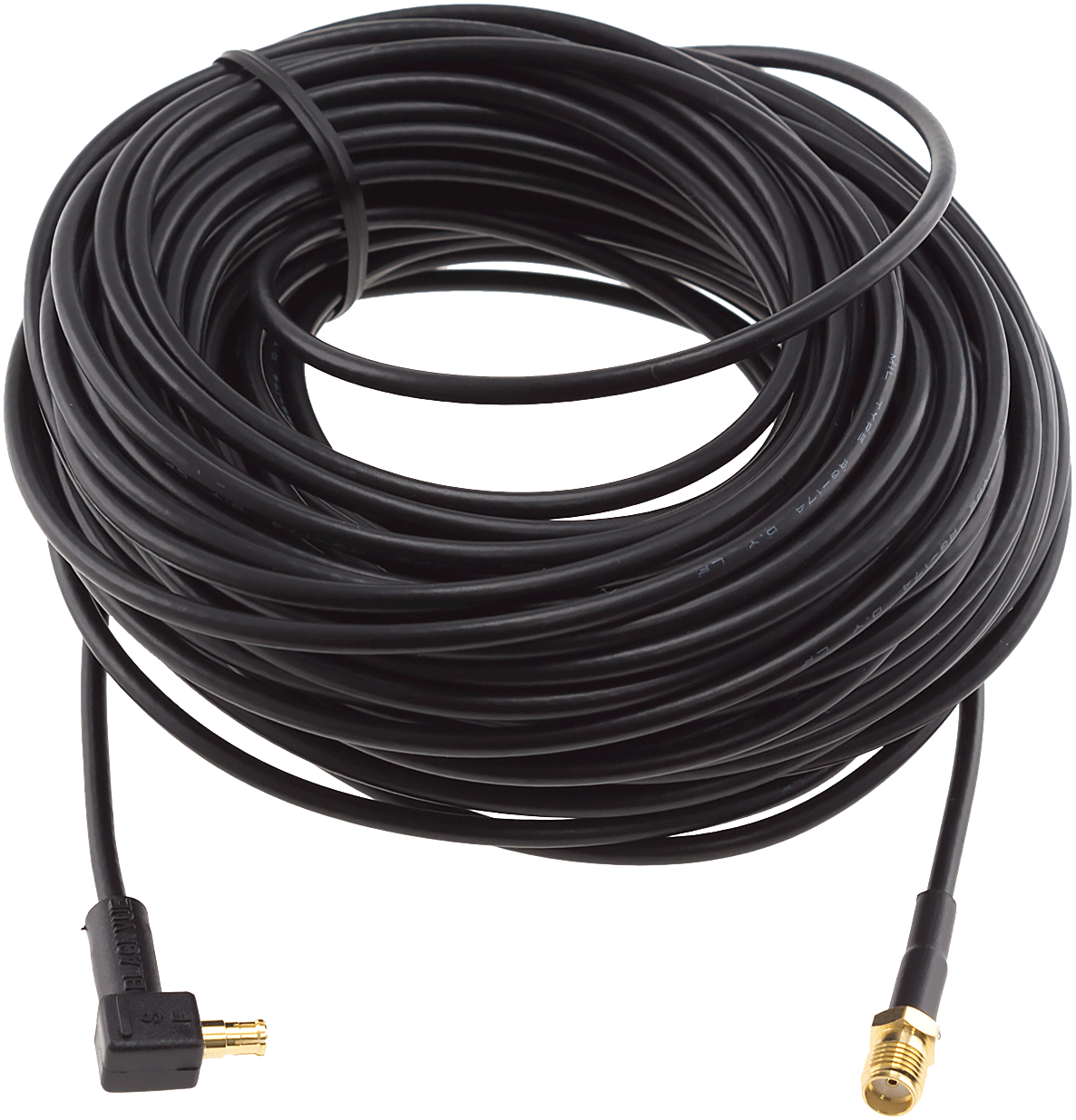

Rear Camera Connection	Coaxial cable
Memory Support	microSD card up to 1TB
Recording Modes	Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode	YES (hardwiring cable included)
Parking Mode Event Voice Notifications	YES
Imaging Sensor	Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle	Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear: Diagonal 139°, Horizontal 116°, Vertical 61°
Resolution Frame Rate	Front: Full HD (1920 x 1080) @ 60 fps Rear: Full HD (1920 x 1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming.
Video Codec	H.264 (AVC)
Image Quality and Bitrate Front/Rear	Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps
Format Free	YES (Adaptive)
Event File Overwrite Protection	YES (up to 50)
SD Card Failure Alert	YES
Scheduled Reboot	YES
Video File Extension	MP4
Wi-Fi	Built-in (802.11 b.g.n)

Specifications
Cloud Compatible	YES
GPS	Built-in (Dual Band : GPS, GLONASS)
Microphone	Built-in
Speaker	Built-in
Impact Sensor	3-Axis Acceleration Sensor

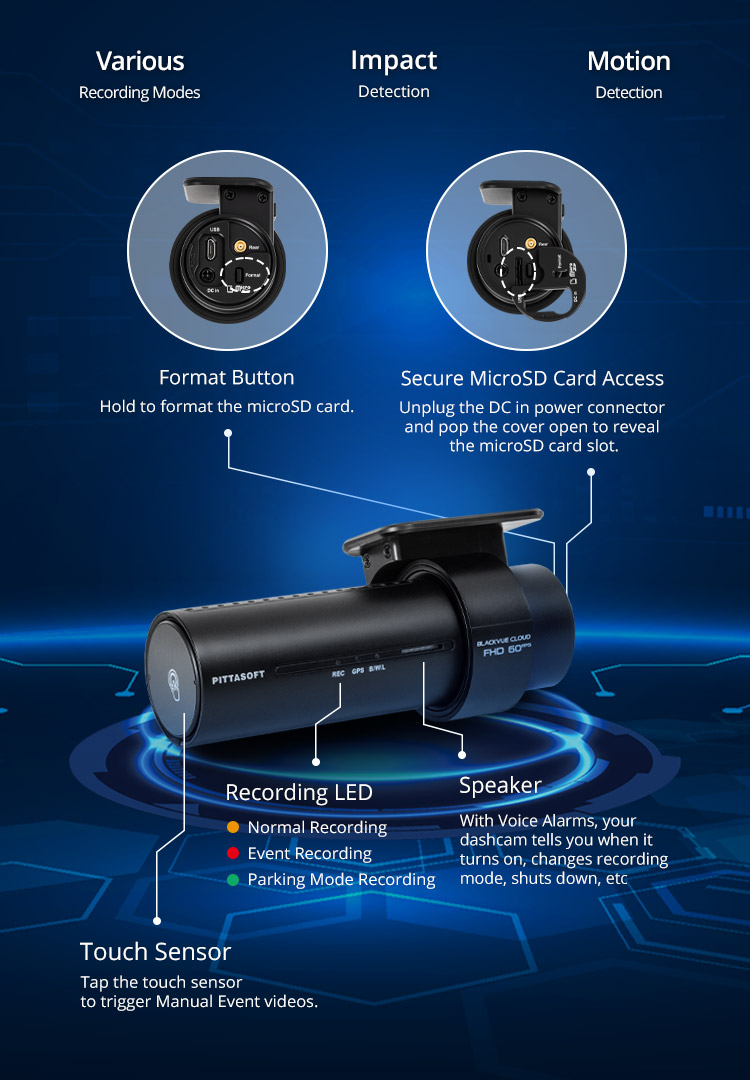

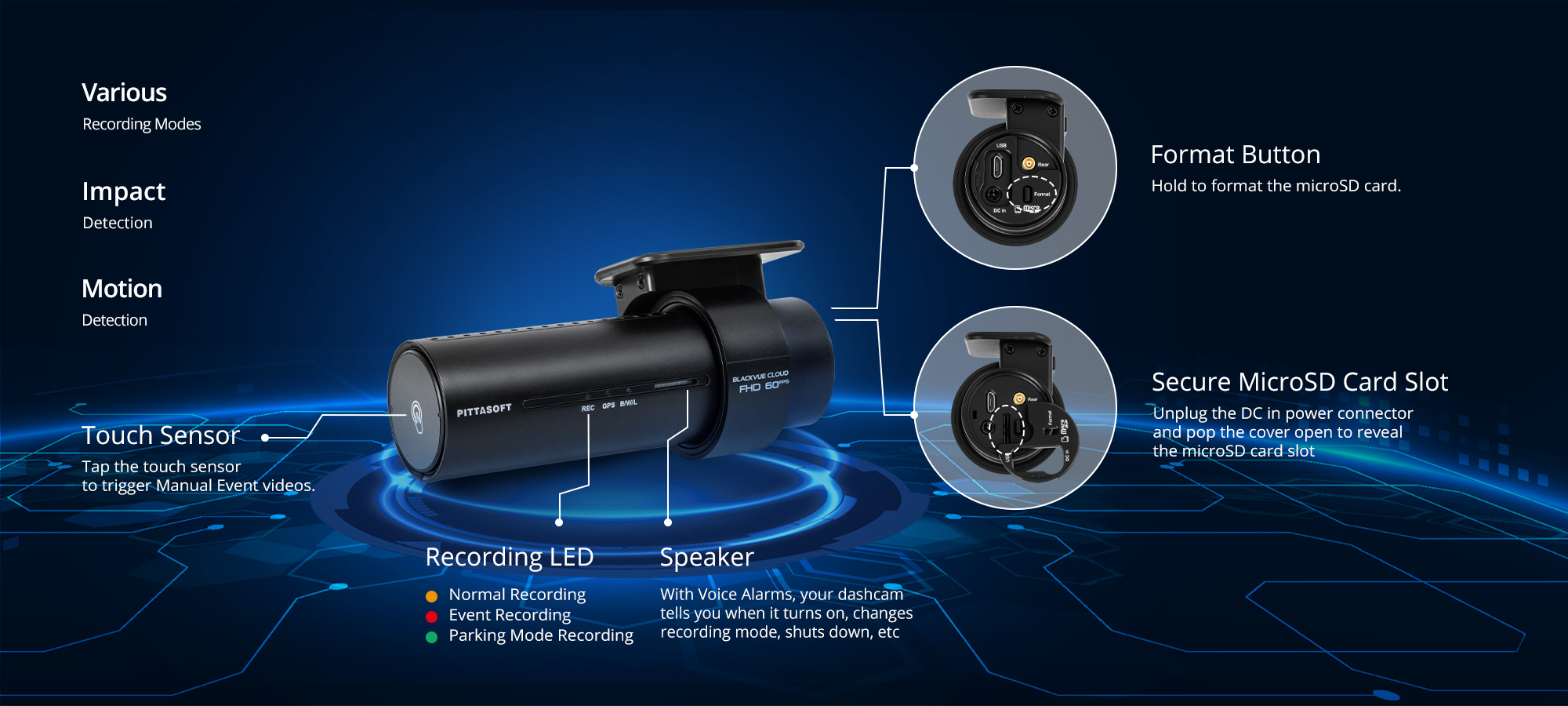

LED Indicators	Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED

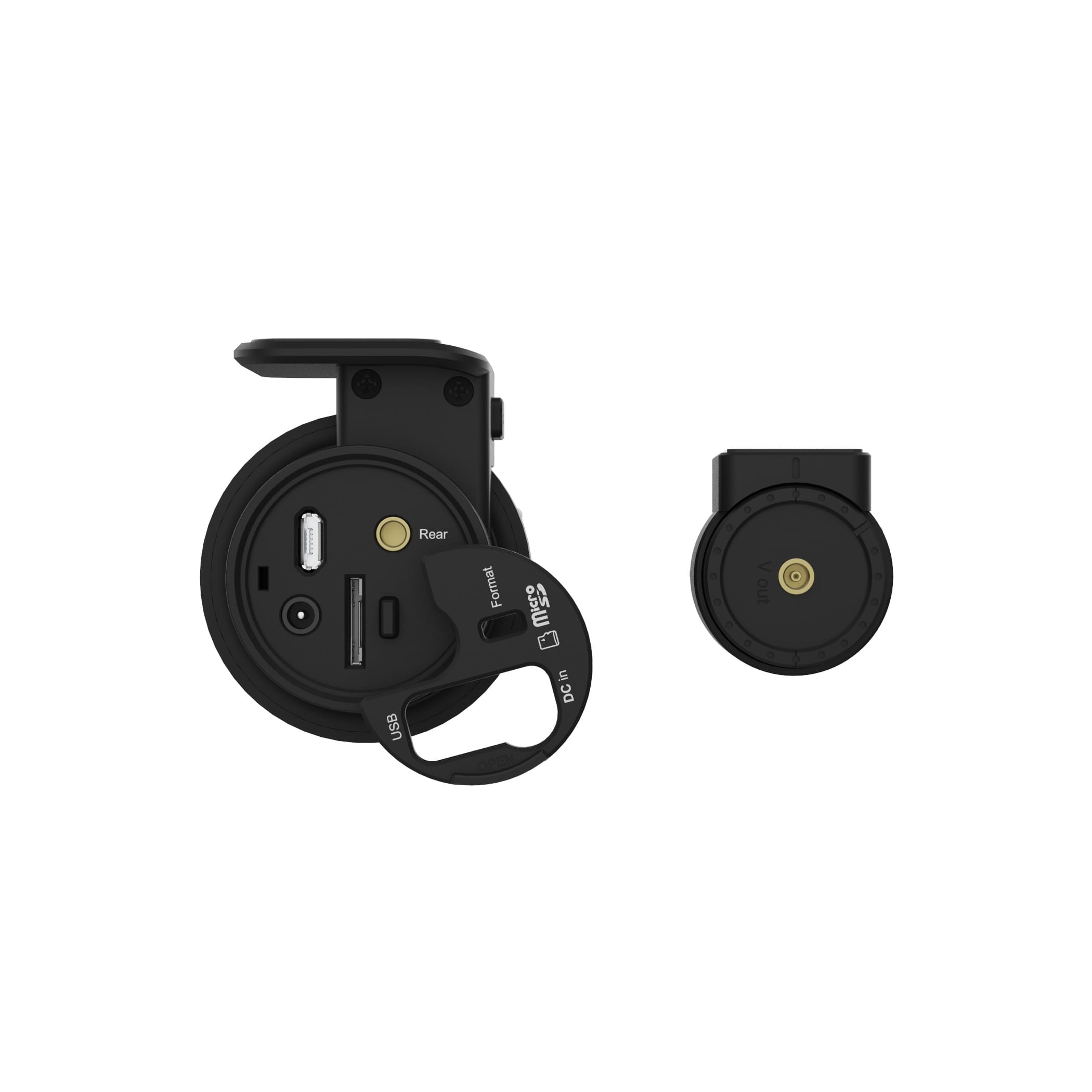

Button	Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature	-20 °C − 80 °C (-4 °F − 176 °F)
Storage Temperature	-20 °C − 80 °C (-4 °F − 176 °F )
High Temp Cut Off	Approx. 80 °C (176 °F)
Backup Battery	Built-in supercapacitor
Input Power	DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour	Normal Mode (GPS On/2CH): Avg. 380mA / 12V Parking Mode (GPS Off/2CH): Avg. 300mA / 12V * Actual power consumption may vary depending on use conditions and environment.
Certifications	Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC
Software	BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application	BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
Others	Adaptive Format-Free File Management System
Bluetooth	Built-in (V2.1+EDR/4.2)
LTE	External (optional)

Recording Time

Model	Memory Capacity	Image Quality	Resolution
DR750X-2CH / DR750X-2CH IR / DR750X-2CH TRUCK / DR750X-2CH Plus / DR750X-2CH IR Plus / DR750X-2CH TRUCK Plus			Full HD @60fps + Full HD @30fps
	16GB	Extreme	55 MIN

		Highest	1 HR 25 MIN
		High	1 HR 50 MIN
		Normal	2 HR 20 MIN
	32GB	Extreme	1 HR 50 MIN

		Highest	2 HR 50 MIN
		High	3 HR 40 MIN
		Normal	4 HR 40 MIN
	64GB	Extreme	3 HR 40 MIN

		Highest	5 HR 40 MIN
		High	7 HR 20 MIN
		Normal	9 HR 20 MIN
	128GB	Extreme	7 HR 20 MIN

		Highest	11 HR 20 MIN
		High	15 HR 40 MIN
		Normal	18 HR 40 MIN
	256GB	Extreme	14 HR 40 MIN

		Highest	22 HR 40 MIN
		High	31 HR 20 MIN
		Normal	37 HR 20 MIN
	Bitrate (Mbps) Front + Rear	Extreme	25 + 10
		Highest	12 + 10
		High	10 + 8
		Normal	8 + 6
