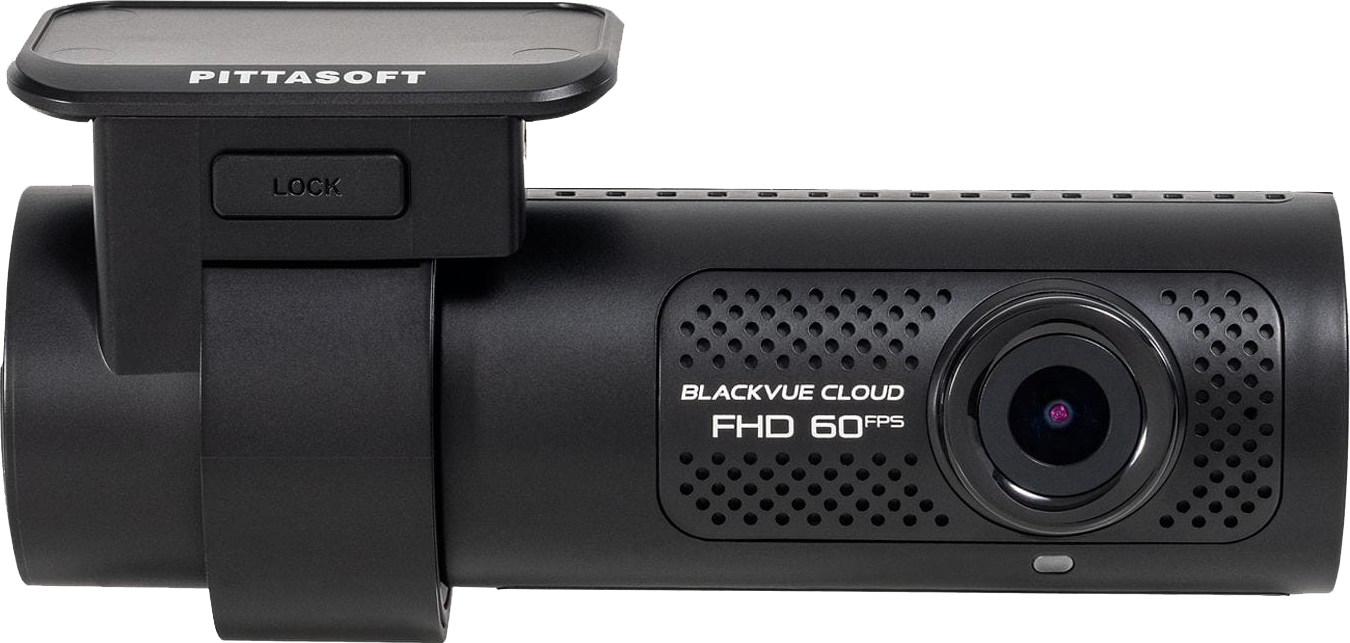

DR770X-1CH II

USD224.99 – USD337.49

- BlackVue DR770X-1CH II features Full HD Sony STARVIS™ image sensor for best image quality under any light.
- Also included are GPS logger, built-in Wi-Fi, Cloud connectivity, impact and motion detection.

Warranty

2 years (Dash Cam)

Memory Capacity

Clear

Quantity

via Wi-Fi/
USB module

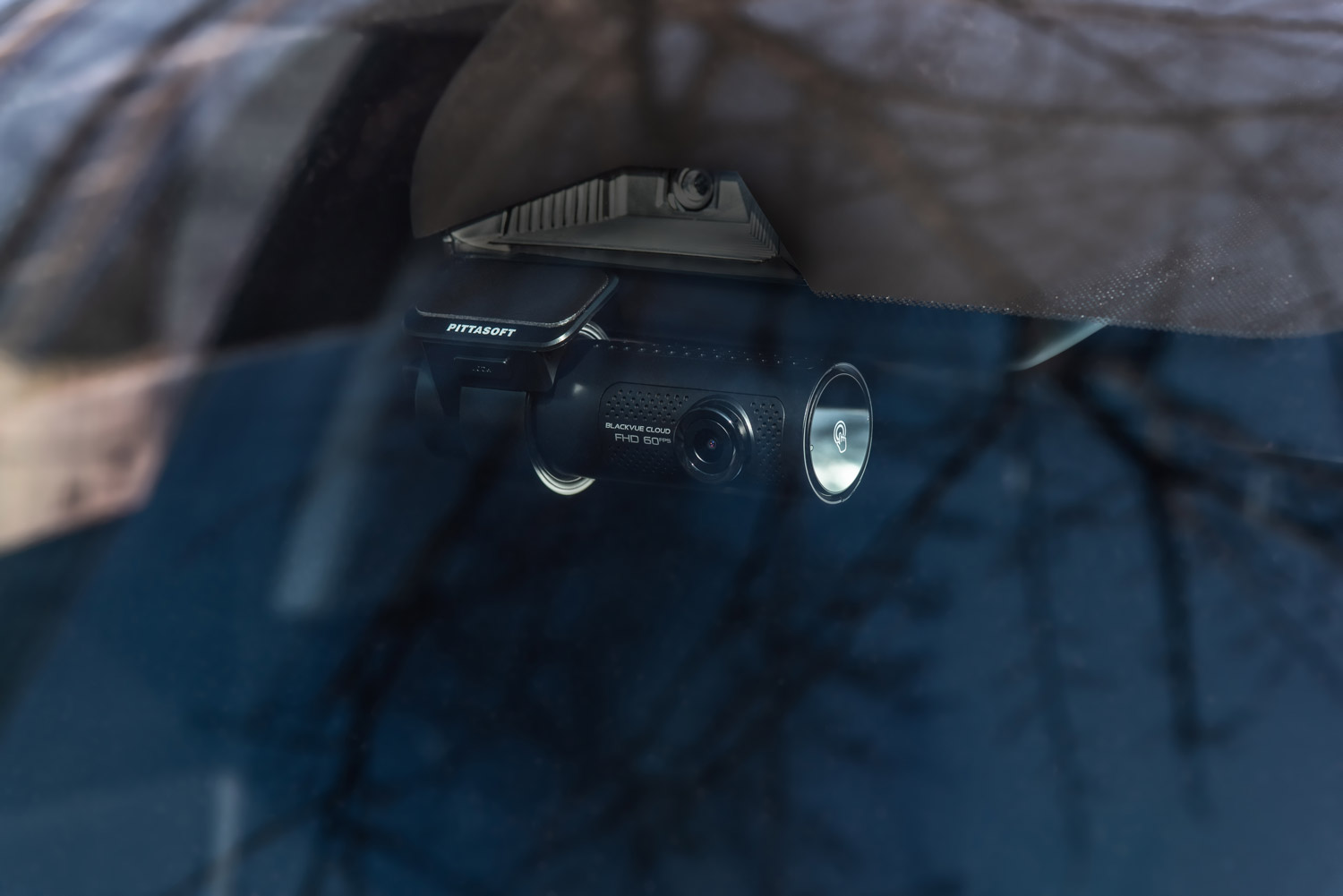

Let your BLACKVUE watch over your vehicle 24/7

Weight

0.725 kg (1.6lbs)

Dimensions

123(L) x 169(W) x 98(H) mm
4.8(L) x 6.7(W) x 3.9(H) inch

MEMORY CAPACITY

64GB, 128GB, 256GB, 512GB

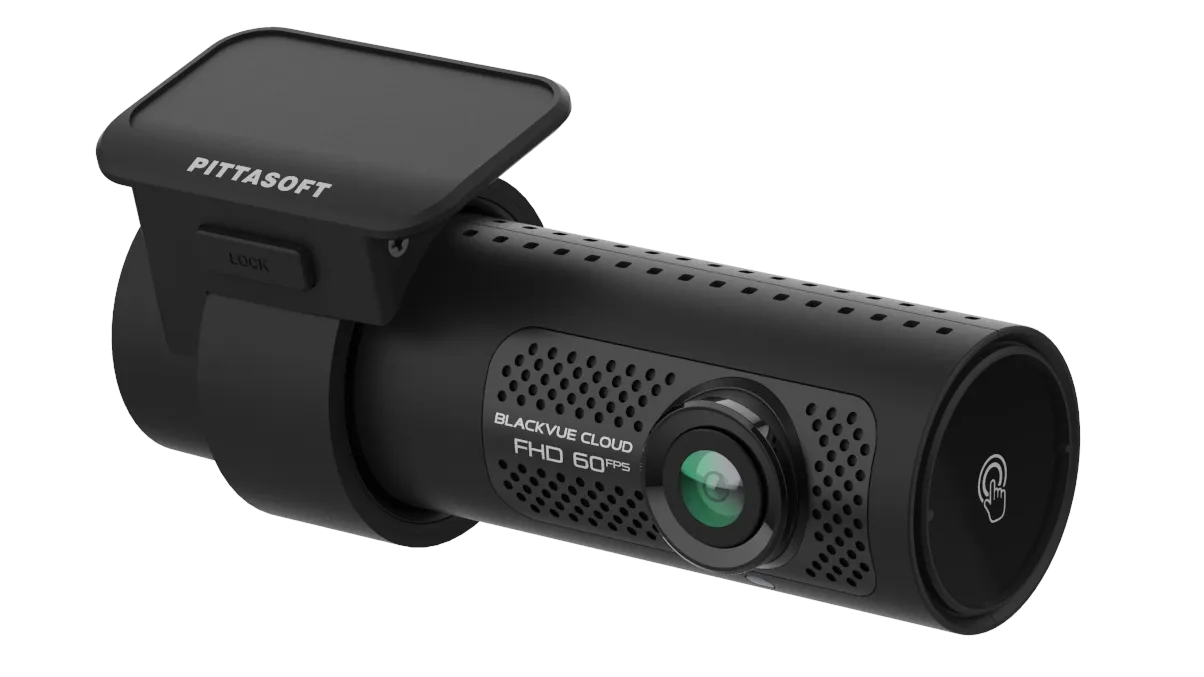

Front Camera

Hardwiring Power Cable

USB-C Power Cable

USB-C 12V Adapter

MicroSD Card

Double-sided tape for
the mounting bracket

Pry tool / Trim Remover

Cable clips (3 EA)

Alcohol Pad

Specifications
Model Name	DR770X-1CH II
Channel	1CH (upgradable to 2CH)
Highlights	Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module
Product Dimensions	Black /length 135.0mm x Width 101.0mm x Height 37.5mm / 209g
Memory Support	microSD card up to 1TB
Recording Modes	Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode	YES (hardwiring cable included)
Parking Mode Event Voice Notifications	YES
Imaging Sensor	Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle	Diagonal 139°, Horizontal 116°, Vertical 62°
Resolution Frame Rate	Full HD @60fps * Frame rate may vary during Wi-Fi streaming
Video Codec	H.264 (AVC)
Image Quality and Bitrate Front/Rear	Highest (Extreme): 25 Mbps Highest: 12 Mbps High: 10 Mbps Normal: 8 Mbps
Format Free	YES (Adaptive)
Event File Overwrite Protection	YES (up to 50)
SD Card Failure Alert	YES
Scheduled Reboot	YES
Video File Extension	MP4
Wi-Fi	Built-in (802.11 b.g.n)
Cloud Compatible	YES
GPS	Built-in (Dual Band : GPS, GLONASS)

Specifications
Microphone	Built-in
Speaker	Built-in
Impact Sensor	3-Axis Acceleration Sensor

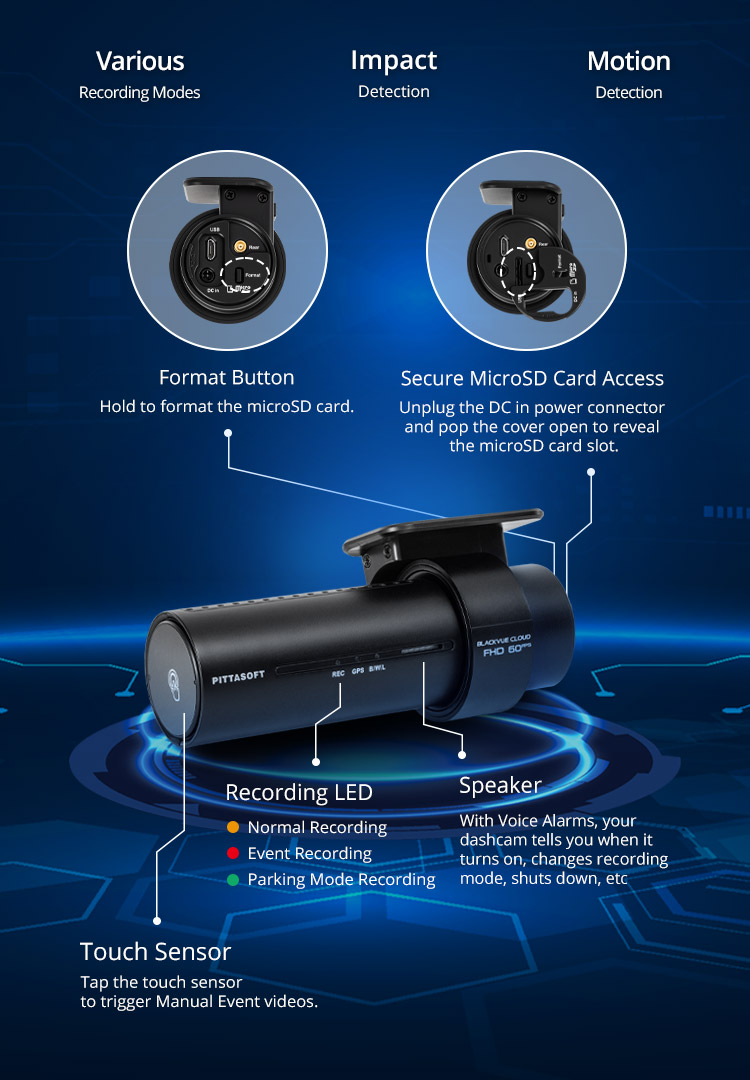

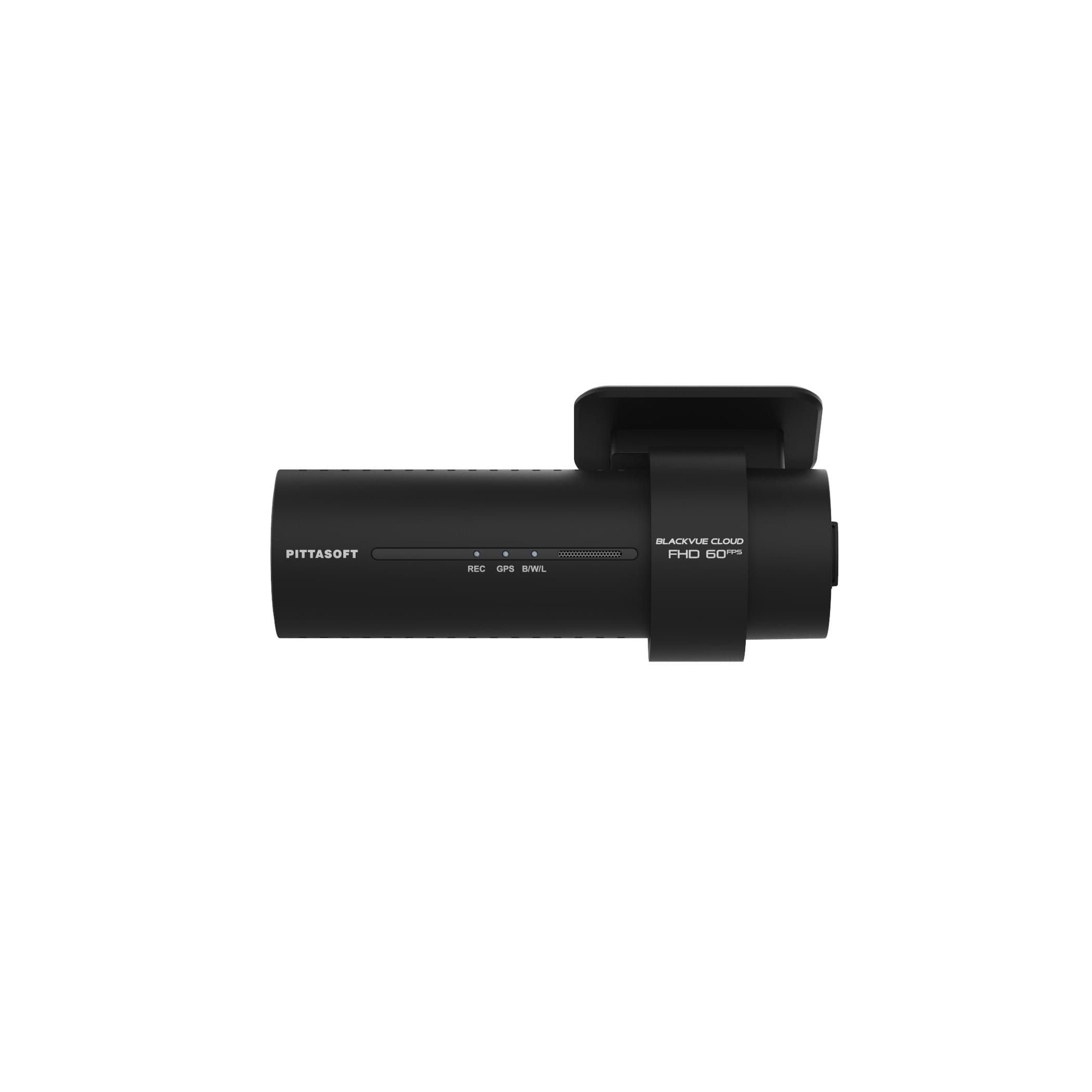

LED Indicators	Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED

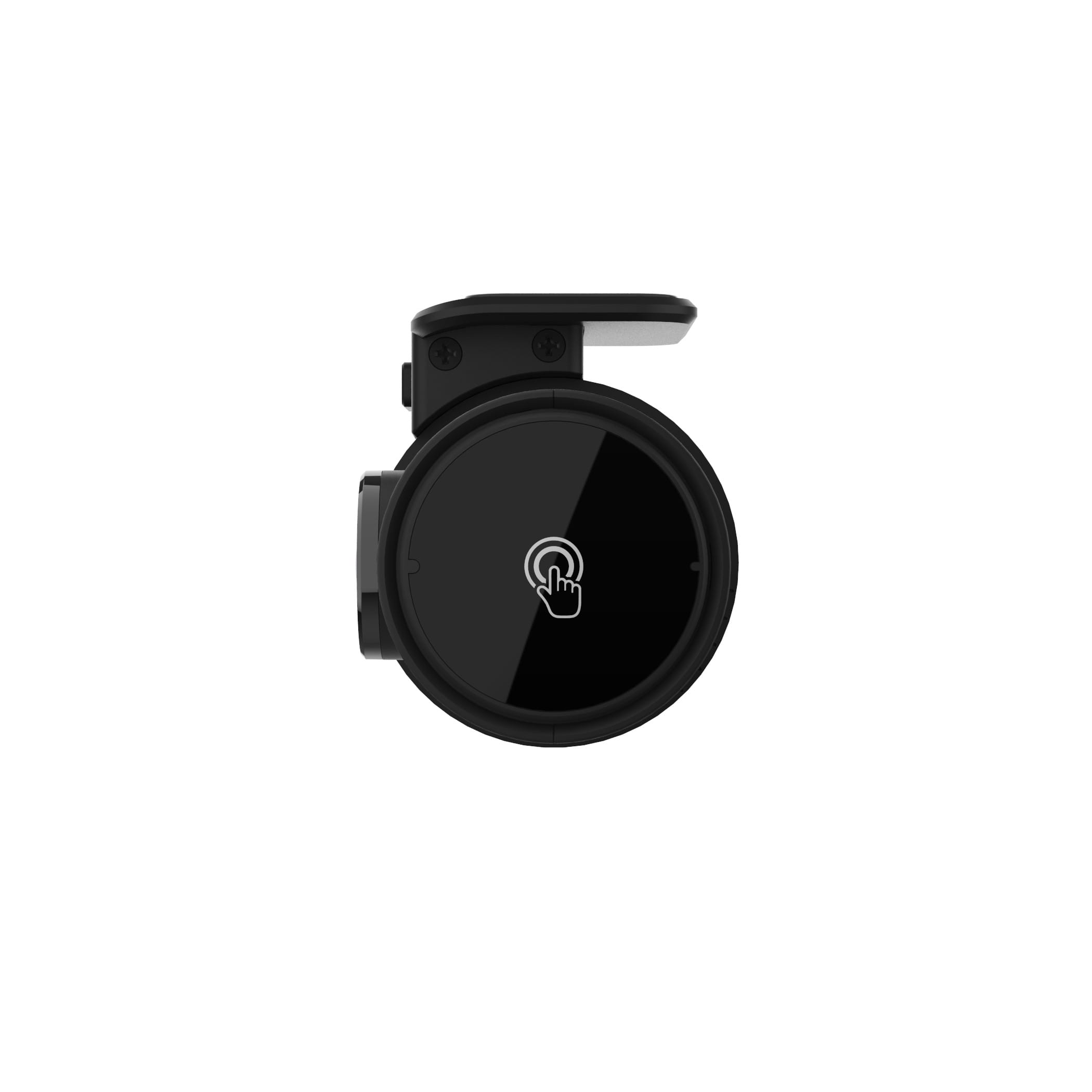

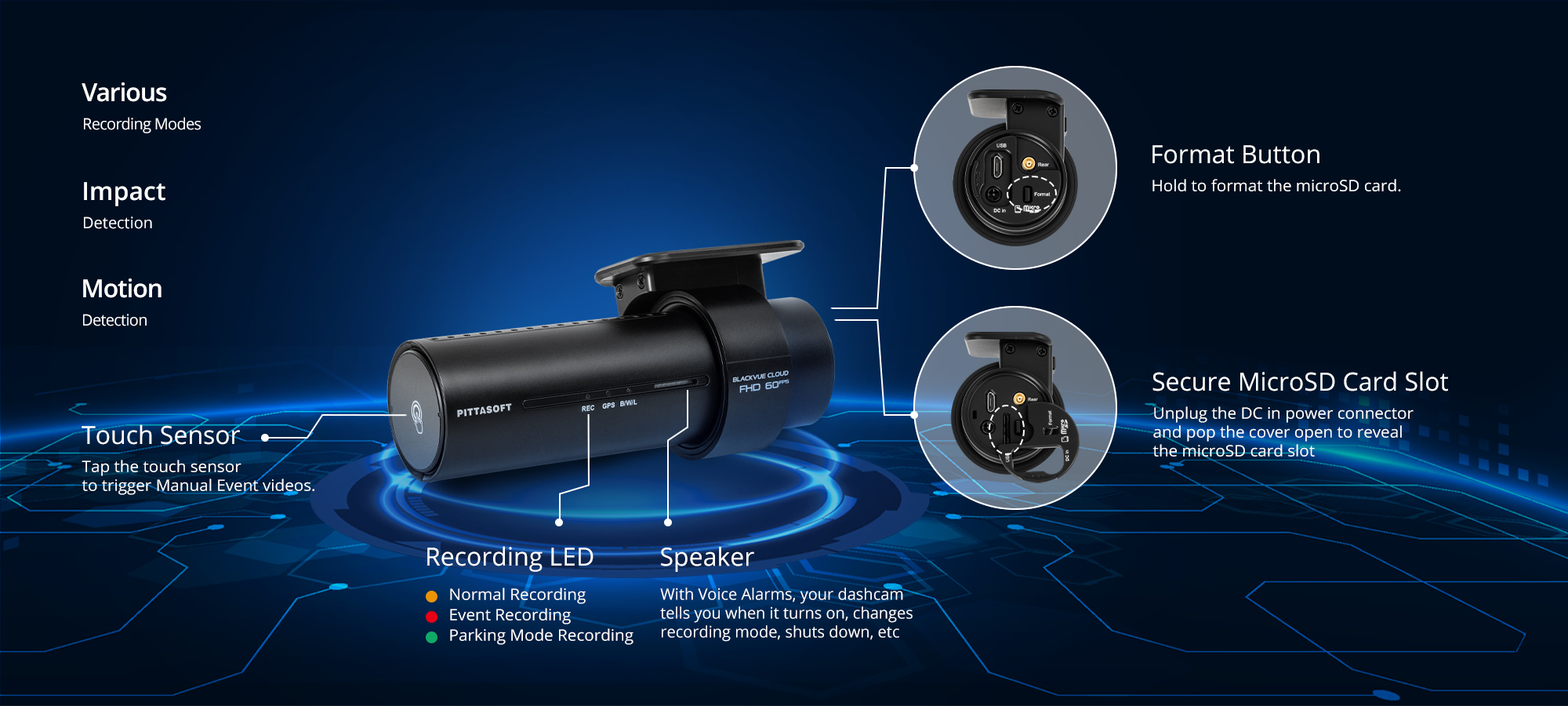

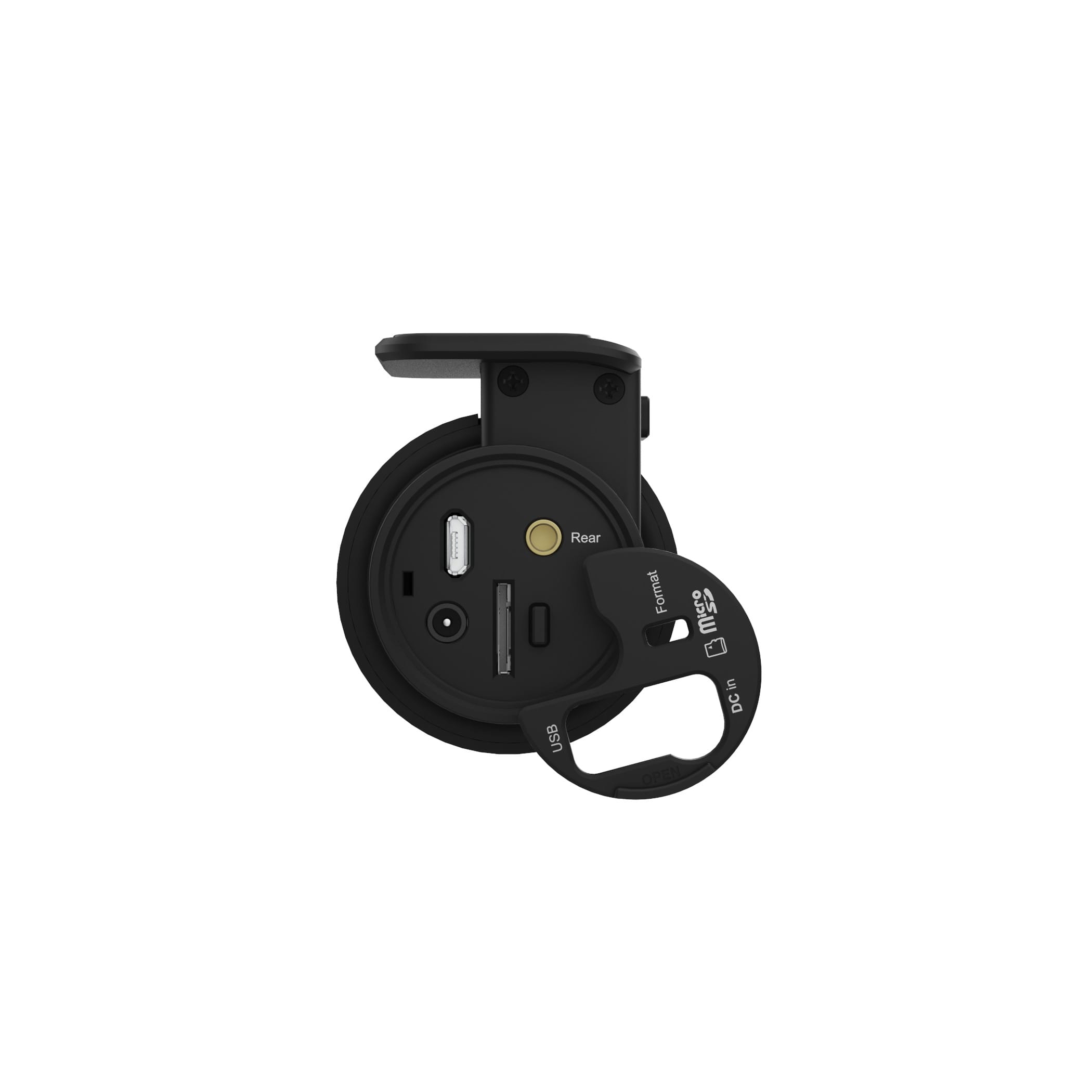

Button	Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature	-20 °C − 80 °C (-4 °F − 176 °F)
Storage Temperature	-20 °C − 80 °C (-4 °F − 176 °F )
High Temp Cut Off	Approx. 80 °C (176 °F)
Backup Battery	Built-in supercapacitor
Input Power	DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour	Normal Mode (GPS On/1CH): Avg. 240mA / 12V Parking Mode (GPS Off/1CH): Avg. 190mA / 12V * Actual power consumption may vary depending on use conditions and environment
Certifications	FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Software	BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application	BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
Others	Adaptive Format-Free File Management System
Bluetooth	Built-in (V2.1+EDR/4.2)
LTE	External (optional)
